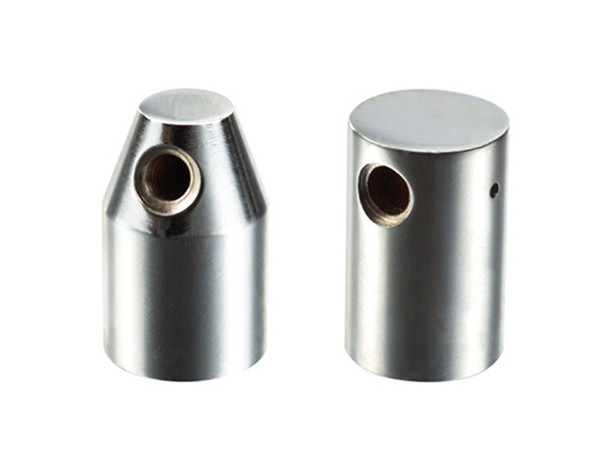

Product Name: | Handle Seats |
Model Number: | HY8312.1 |
Brand Name: | Huayang |
Executive Standard: | JB/T 7272.1-94 (GB4141.16-84) |
Material: | Cast iron |
Surfaced Process: | Sand-blasted / Chrome bright |
Place of Origin: | Zhejiang, China (Mainland) |

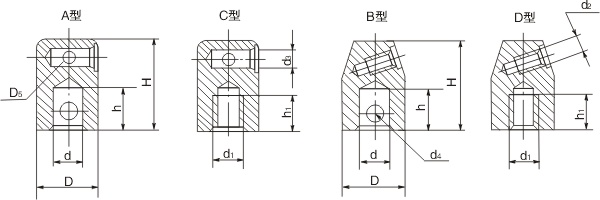

Drawing
Parameter Size
Item No. | Main dimensions(mm) | Mounting hole | |||||||||
Type A\Type B | Type C\Type D | D | H | d | d? | d? | d? | d? | d? | h | h? |
HY8312.1\12x25 | HY8312.1\M12x25 | 25 | 40 | 12 | M12 | M8 | 8 | 5 | 3 | 16 | 14 |
HY8312.1\16x32 | HY8312.1\M16x32 | 32 | 50 | 16 | M16 | M10 | 10 | 6 | 3 | 20 | 18 |
HY8312.1\20x40 | HY8312.1\M20x40 | 40 | 63 | 20 | M20 | M12 | 12 | 6 | 4 | 25 | 22 |
HY8312.1\25x50 | HY8312.1\M24x50 | 50 | 76 | 25 | M24 | M16 | 1+ | 8 | 5 | 32 | 28 |
