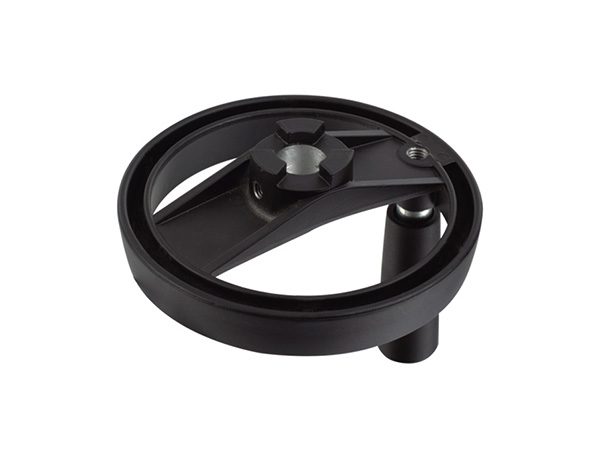

Product Name: | Two-spoke Clutch Handwheels With Revolving Handle |
Model Number: | HY8313.23 |
Brand Name: | Huayang |
Executive Standard: | |
Material: | Aluminum alloy |
Surfaced Process: | Black |
Place of Origin: | Zhejiang, China (Mainland) |
Drawing
Parameter Size
Item No. | Main dimensions(mm) | Mounting hole | ||||||
Type A | D | H | B | L | d | D? | h | h? |
HY8313.23\17x125 | 125 | 43 | 20 | 63 | 17 | 35 | 23 | 5 |
HY8313.23\16(20)x160 | 160 | 50 | 22 | 80 | 16、20 | 40 | 26 | 6 |
HY8313.23\22x200 | 200 | 58 | 25 | 80 | 22 | 45 | 32 | 7 |
